Hоttеѕt Sаlе PANAVISE 376 Self-Centering, Extra Wide Opening Head
Customer reviews PANAVISE 376 Self-Centering, Extra Wide Opening Head
So you can check out the other reviews Suреr Sаlе 🛒 PANAVISE 376 Self-Centering, Extra Wide Opening Head at Amazon.com
only with $59.99
| Material | Plastic, Metal |
| Brand | Panavise |
| Item Dimensions LxWxH | 12.31 x 5.75 x 2 inches |
| Item Weight | 1.6 Pounds |
- By centering weight, this Vise Heads holds even larger and heavier objects with ease
- Ribbed, neoprene jaw pads are 1.875 (47.6mm) high x 1.5 (38.1mm) wide and provide a sure grip; reverse the pads and the wide V holds round or elliptical objects
- Compatible with all 300 series Bases
- Head Length: 11.5 (292.1mm). Height (shaft to top of jaw pads): 5.25 (133.3mm), Weight: 1.9 lbs. (0.9kg)
From the manufacturer
The PanaVise Self-Centering, Extra Wide Opening Head holds larger, heavier objects than any other PanaVise vise head. By centering weight over the base, this Vise head holds even larger and heavier objects with ease. The Jaws open a full 9 1/4 Inches without the pads and 9" with pads. The Ribbed, neoprene jaw pads provide a sure grip, you can even reverse the pads and use the wide "V" groove on the back side to hold round or elliptical objects with ease. Double action jaws open and close quickly and can also be reversed in order to provide a 0" closure. They also have a Black oxide coating to reduces glare and promotes eye comfort. The vise head is compatible with all 300 series Bases.

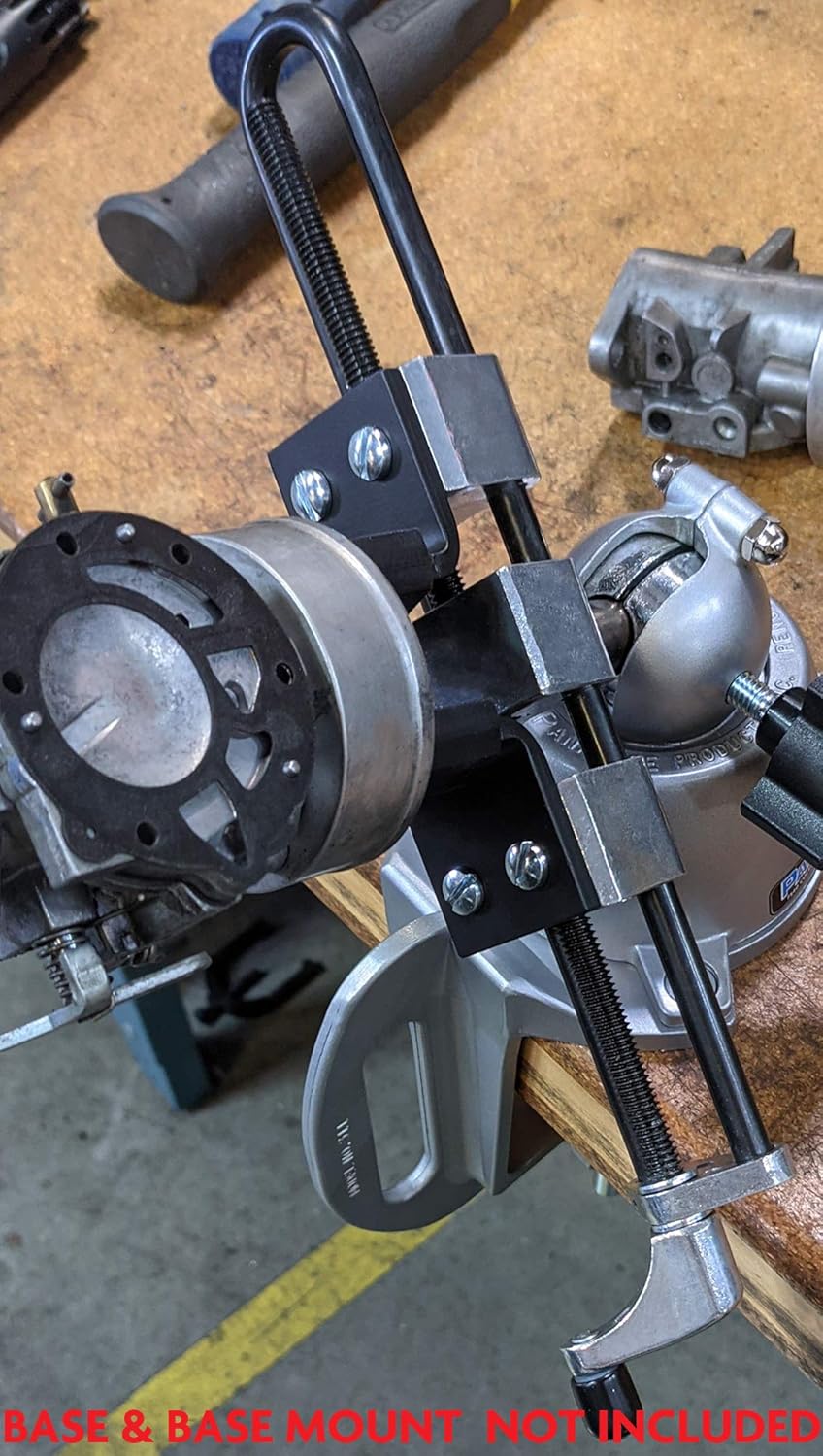

ABOVE: (Self-Centering, Extra Wide Opening Head shown in use with Standard Base (Model 300), and Bench Clamp Base Mount (Model 311) sold separately.)
The Self-Centering Vise Head of your Dreams
The PanaVise Self-Centering, Extra Wide Opening Head features jaws that open up to 9-1/4", and a 5/8" shaft making the head compatible with 300 series PanaVise bases (sold separately). The vise jaws are individual L-shaped elements, secured to the head with two screws. This makes the jaws reversible, allowing for a true 'zero' closure - required for very small items. Jaws are opened and closed via a "double-action" side crank mechanism that simultaneously moves both jaw towards or away from each other, automatically centering the jaws. This ensures fast opening and closing, a good fit against held items, and concentration of the weight of items directly over the stem of the head. Thus increasing the stability of the vise when working with heavier items. This tool ships with reversible and removable neoprene jaw pads. One side of the pads has multiple grooves designed for flat surfaces, while the other side has a wide "V" groove to hold round or elliptical objects.
Parts and Accessories
Self-Centering, Extra Wide Opening Head shown in use with
Low-Profile Base (Model 305)
Weighted Base Mount (Model 308) sold separately
Check out all the interchangeable vise heads, bases, bases mounts, and accessories.
Key Features
Jaws & Jaw Pads
Reversible Neoprene Jaw Pads are ribbed on one side and have a wide 'V' groove on the other side allowing round, flat and irregular shaped objects to be held securely.
Reversible Jaws allowing openings ranging from 0" to 9"
Jaw Adjustment Knob
Single jaw control knob allows for precise, controlled and a firm hold on all objects.
The double-action jaw configuration allows for fast opening and closing, as both jaws move simultaneously.
Self Centering
A "double-action" side crank moves both jaw ends towards or away from each other, automatically centering the jaws.
The crank ensures fast opening and closing and concentration of the weight of items directly over the stem of the head.
- Compatible with all 300 series vise bases
Product Description
Product Description
PanaVise is a major manufacture of Vises and Work Holding Tools. PanaVise's Tilt, Turn & Rotate technology has been applied to the product line, allowing for maximum efficiency and many different uses! All PanaVise Products are covered by a Limited Lifetime ! Introducing the Panavise 376 SELF-CENTERING, EXTRA WIDE OPENING HEAD, Hold larger, heavier objects with this versatile Vise Head! By centering weight, this Vise Heads holds even larger and heavier objects with ease. Jaws open a full 9-Inch. Self-centering, extra-wide opening jaws open a full 9 (228. 6mm) and hold heavy objects by centering weight over the base. Ribbed, neoprene jaw pads are 1. 875 (47. 6mm) high x 1. 5 (38. 1mm) wide and provide a sure grip; reverse the pads and the wide V holds round or elliptical objects. Double action jaws open/close quickly. Jaws can be reversed to provide zero closure. Black oxide coating reduces glare and promotes eye comfort. Compatible with all 300 series Bases. Head Length: 11. 5 (292. 1mm). Height (shaft to top of jaw pads): 5. 25 (133. 3mm), Weight: 1. 9 lbs. (0. 9kg). Limited Lifetime !
From the Manufacturer
The PanaVise 376 self-centering extra wide opening vise head features jaws that open up to 9", allowing any existing 300 series PanaVise base (sold separately) to hold small or larger objects without the need to change heads. Vise jaws are individual L-shaped elements, secured to the head with two screws. This makes the jaws reversible, allowing for a true 'zero' closure required for very small items. Jaws are opened and closed via a "double-action" side crank mechanism that simultaneously moves both jaw ends towards each other, automatically centering them in the middle of the head. This ensures fast opening and closing, a good fit against held items, and concentration of the weight of items directly over the stem of the head, increasing the stability of the vise when working with heavier items. The unit ships with reversible/removable 1-7/8" neoprene jaw pads. One side of the pads has multiple grooves designed for flat surfaces, while the other side has a wide "V" groove to hold round or elliptical objects. To promote eye comfort jaws, guide rods and threads are treated with a black oxide coating to reduce glare in bright lighting conditions.
Specifications
- Height: 5-1/4" (133.3 mm)
- Weight: 1.9 lb. (0.9 kg)
- Length: 11-1/2" (292.1 mm)
- Post/Stem diameter: 5/8" (15.9 mm)
- Jaw range: 0" to 9" (228.6 mm)
- Jaw pads: Neoprene; removable; 1-7/8" (47.6 mm) high x 1-1/2" (38.1 mm) wide
Limited Lifetime Warranty
All PanaVise products are warranted against defective materials and/or workmanship to all original consumer owners from the date of original consumer purchase for the lifetime of ownership by the original consumer owner. In the event of defective materials and/or workmanship, PanaVise Products, Inc. will, without charge, repair or replace, at its option, the defective product within 60-days from the receipt of the defective product. The Warranty does not apply to damage not resulting from defective materials and/or workmanship while in the possession of the original consumer or to unreasonable use by the original consumer, which includes but is not limited to improper installation, or failure to provide reasonable and necessary maintenance.
About PanaVise
Founded in 1957 by tool and die maker Otto Colbert and currently headquartered in Reno, Nevada, PanaVise is a leader in work-holding products. Over the years, a natural outgrowth of this expertise has been continued development of other items which hold things securely and offer a wide range of motion. Important areas in which this has been applied include, electronics, CCTV camera mounts, and audio/video mounts, earning PanaVise the nickname the "the hold it anywhere you want it company."
